Water gardens Pond aeration 2

- Pond aeration equipment and supplies review :

Outdoor compressor aeration system for water gardens

Aeration for small water gardens less than 2000 gallons :

courtesy to : springdalewatergardens.com/ShopSite/page26.html

High efficiency dual output compressor with 6' grounded power cord. Compressor is to be mounted on a post.

Installation is easy!

PondAir 2 :
$75.95

Aerates water gardens up to 1000 gallons

High efficiency dual output compressor with 6' grounded power cord. Compressor is to be mounted on a post. Features include: Flow control dial

Two blue airstones
2-30 foot rolls of high-grade, UV resistant black silicone airline, 2 check valves
Operates with low energy demand (see below)
Operates on only FOUR WATTS!
Air flow is 0.15 CFM
One year Warranty

PondAir 4
$96.95

Aerates water gardens up to 2000 gallons

High efficiency quad output compressor with 6' grounded power cord. Compressor is to be mounted on a post. Features include: Flow control dial

Four blue airstones
4-30 foot rolls of high-grade, UV resistant black silicone airline, 4 check valves
Operates with low energy demand (see below)
Operates on only EIGHT WATTS!
Air flow is 0.30 CFM
One year Warranty

Larger Than 2000 Gallon ( For the Koi Ponds ) :

Koi Pond Aeration Kits:

courtesy to : springdalewatergardens.com/ShopSite/page26.

Water Garden Professional Aeration Kit, Great for All Seasons!

Aeration Benefits:

-Increases oxygen levels to ensure healthy pond life

-Ensures pond balance by promoting beneficial bacteria growth for biological filters.

-Lowers toxic gases and ammonia by promoting gas exchange.

-Reduces chance of fish kill during the winter by keeping a hole open on the water's surface.

Aeration for Healthy and Happy Fish!

If your waterfall or fountain is not providing enough aeration or you wish to keep your pond open all winter long then these aeration kits are perfect! Powered by a silent, reliable compressor, this diffuser system will add oxygen, aerate, circulate, eliminate dead spots and keep your pond and fish active and healthy all year long, costing only pennies per month. Aeration kits include an all weather linear compressor capable of pushing air up to 300 feet to the pond's edge if electricity is not near the pond. Compressors should be covered to protect from rain, but with a cover that allows some air circulation.

Easy installation!

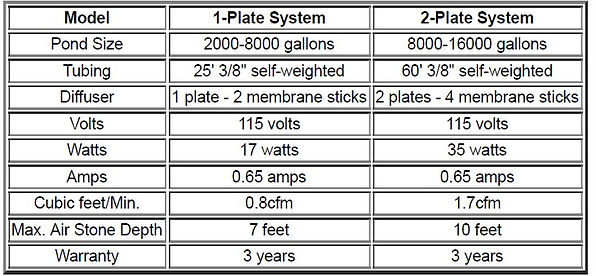

Koi Air - 2 Plate System
$519.00

Other Air Pumps , compressors and brands :

- www.macarthurwatergardens.com/Aeration/Aeration.shtml

- www.pondusa.com/product-category/air-pumps/

- universalpondsupply.com/Category/Air-Pump-Diffused-And-Surface-Aeration-For-Pond-And-Lakes

- www.livingwateraeration.com/gapoae.html

- www.underwaterwarehouse.com/Airmax-Diaphragm-Compressors-and-Kits/KoiAir1-Water-Garden-Aeration-Kit-2-Sticks-p-6704.html

- www.aerationsupply.com/catalog/sub-surface-pond-and-lake-aeration-systems/genair-small-pond-aerators.html

Special system :

OxyTex Pond Aerator :

courtesy to : www.watergarden.org/Aeration-Pumps/OxyTex-Pond-Aerator

This world innovation, OxyTex CWS, combines 2 important filter system functions: Aeration and filter surface. It supplies the pond with vital oxygen and keeps a lot of space ready, through its unique bio-technical fiber structure, for important micro organisms that effectively decompose excess nutrients.

Product characteristics and advantages:

Unique pond aerator with a large surface for micro organisms
Multi-functional: Oxygen supply, circulation and nutrient decomposition in one
Supplemental nutrient decomposition
Biological activation of the entire pond
Implementation as individual filter medium is possible
Dimensions: approximately 8.5 inches x 12 inches tall
Includes approx. 16 feet of 1/4 inch air tubing.
Effective Pond Surface: up to 32 sq.ft.
Air Injection Capacity: up to 250 GPH
Max. Input Pressure: 6 psi
Min. Installation Depth: 18 in.
Manufacturer Limited Warranty: 2 Years
Max Recommended Pond Volume: up to 5,000 gal
Important Note:This unit requires an air pump for operation. This is not included with the item

Note: This unit was designed to work with the Oase AquaOxy Air Pump which is no longer available. This can be hooked up to most any air pump but hose may need to be adapted.

Solar Pond Aerators & Pumps :

Water Garden supplies an energy efficient and cost effective range of solar aerators and solar fountain pumps that are particularly suited for small ponds without a local electricity supply. Solar powered pumps and fountains do not require hot weather to operate - sunny conditions are all that's required. Solar Aerators are particularly useful in the summer months however, as warm water cannot support as much oxygen as cooler water temperatures would.

- Solar Powered Air Pump for Pond Oxygenation :

courtesy to : www.crazysales.com.au/online-solar-powered-air-pump-for-pond-oxygenation

Videos :

solar powered air pump for small to medium size ponds unboxing

Solar Air Pump

Outdoor pump system for water gardens ( Floating Pumps )

A floating fountain is ideal for those who want to add a special effect to an existing pond without much installation (such as special events) or for ponds that vary in water level.

The Pond Jet floating fountain is ready to connect and can be installed in minutes. Additional nozzle patterns can be installed (must be purchased separately).

Easy to Install and Easy to Adjust :

The best feature of the pond jet is its ability to be deployed in a number of applications that may have drastically different conditions. With no need to cut into liner, or place pump on the bottom of a pond, the PondJet truly is a dream come true for those who have either a large or small pond and want an installation that is as simple as possible. It is as simple as removing the PondJet from its packaging, assembling the few parts, run power to the pump, and place in the water of your pond, truly an item that will add life to your pond and will take no time to set up.

ALL IN ONE SOLUTION :

The PondJet floating fountain is ready to be placed in the water as soon as you take it out of the box with minimal assembly. The PondJet comes with everything you need in box that means you have the pump, float, and nozzle; no need for any other components to add fascinating moving water to your pond at home. It truly is a great solution for those that want a fountain in their pond, but do not wish to do modifications to their existing pond set up. (Image Shown with Optional Lighting Set)

ADJUSTMENTS MADE EASY:

The PondJet floating fountain has been designed with ease of use in mind, the image to the right shows the PondJet with one of our Frothy Nozzles attached, which will adjust the fountain pattern to have a beautiful foaming effect. The installation time on a nozzle is almost non-existent, simply unscrew existing fountain nozzle and screw on the 1" nozzle of your choice and you are done. Make your fountain as individual as you by using any 1" nozzle pattern!

ADD THE BEAUTY OF LIGHT TO YOUR POND:

The PondJet floating fountain can be turned into your pond's centerpiece by adding the PondJet lighting system. With simple assembly your pond will have not only the beauty of moving water, but will draw your guests in with the welcoming glow of illuminated water!

For more information about OASE floating jet fountain .. please click here ..

Sample of the product :

- 4400EJF Floating Aerating Fountain .. click here for the supplier website

4400EJF Aerating Fountains are a versatile and beautiful way to introduce aeration to large marine or freshwater environments, featuring a 1HP 208-240V Single phase motor that will provide excellent performance in any setting while remaining power and cost efficient.

The 4400EJF comes in a complete package that is ready to go out of the box, which includes 6 interchangeable nozzle heads, a UV resistant high density thermoplastic float, 2 x 15m braided nylon tethering lines and control panel. The control panel features two timers to control fountain and optional lighting package operation times. The built-in 20 Amp GFCI Breaker protects the fountain motor from power surges and electrical leakage.

This floating aeration fountain system can be used in saltwater applications thanks to the installed sacrificial zinc anode that prevents corrosion from salt water. Suitable to sufficiently aerate bodies of water up to 2,000m² (½ acre) while the anti-clog design allows for solids up to 2.5cm (1") to pass through without causing blockages. The 4400EJF model fountain comes with the option to add bolt-on lighting packages to extend the visual impact of your fountain into the evening hours.

Sacrificial, replaceable Anode installed for Corrosion Protection and use in saltwater applications.
Top intake design that can operate in water as shallow as 0.5m.
Highly efficient motor design and low operating costs with a power consumption of 1,430W
6 individual UV resistant fountain nozzles.
Optional light pack available in Halogen, LED and LED RGB.
2x 15m Nylon tethering lines included and a 1m Power Cable to allow for extensions.
2 year warranty.
Price: £3,984.00

Samples of jet can be used :

- The Daffodil :

courtesy to : aquacontrol.com/catalog/display-aerators/endur-series-2-hp-5-hp-display-aerators/daffodil-2/

The Daffodil has a wide, low fan and a thick, high, center stream. This is an ideal pattern for windy lakes. It is also perfect for golf courses where a high and solid pattern might block the view of a green. The low fan and the single, coherent, center stream would not obstruct the view. Available in stationary and floating configurations.

- floating paddle aerator :

Or Paddlewheel aerators this used in aquaculture ( fish farms ) :

Paddlewheel aerators also utilize air-to-water contact to transfer oxygen from the air in the atmosphere to the water body. They are most often used in the aquaculture(rearing aquatic animals or cultivating aquatic plants for food) field. Constructed of a hub with attached paddles, these aerators are usually powered by a tractor power take-off (PTO), a gas engine, or an electric motor. They tend to be mounted on floats. Electricity forces the paddles to turn, churning the water and allowing oxygen transfer through air-water contact.[2] As each new section of water is churned, it absorbs oxygen from the air and then upon its return to the water, restores it to the water. In this regard paddlewheel aeration works very similarly to floating surface aerators.

Sample Product :

- Paddlewheel Aerators, For Aquaculture & Waste Water :

PART #: PW11-AQ to PW333

Excellent oxygen transfer and circulation.:

These high-quality paddlewheels feature high-efficiency 60 HZ motors and high-quality gear reducers to ensure a long service life. The frame, drive shaft and hardware are 304 stainless steel—all compatible with salt water. Power cable not included. The Standard Aeration Efficiency (SAE) is approximately 4.1 on all models (see Tech Talk 4). Paddlewheel aerators are an excellent choice for medium and large ponds where movement of oxygenated water away from the aerator is most important.

The entire unit, including gear reducer and motor, has a one-year warranty (warranty requires the gear oil be changed after the first 3 months - use SAE 90 oil). Ships motor freight only.
